GSM850/GSM900
|
|

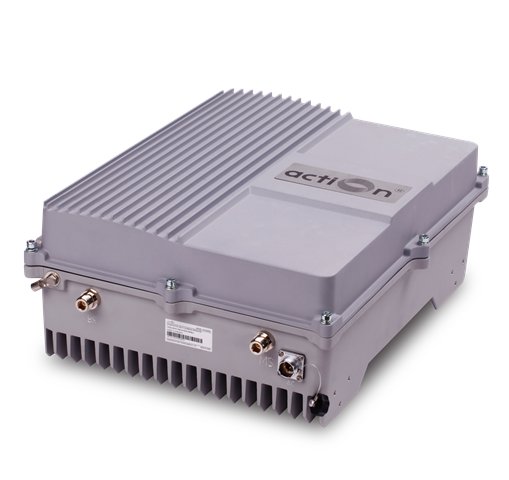

The MCPA is designed to expand signal coverage through enhancing the uplink receiving sensitivity and amplifying the downlink signal strength in the area where call drops and handoff failures happen frequently.

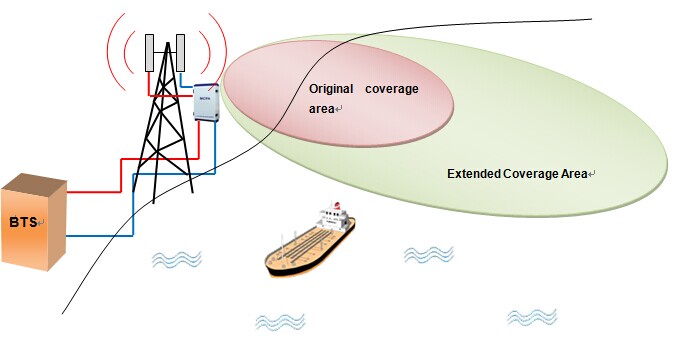

It is installed on the top of telecommunication tower and below the BTS antenna to amplify the mobile signal via a low-noise amplifier before the signal is transmitted to the BTS.
Features
Application
Specifications
Features
- Integrated TMB and TMA into one casing support system full diversity
- The multi-carrier based system can support up to 8 carriers
- Continuous tunable gain of uplink and downlink to meet different coverage requirements
- High reliability and stability
- Low noise figure
- Automatic bypass system with alarm is offered to ensure continued operation of BTS when MCPA has errors, power supply failure or signal surge
- Provided with alarms for overpower of uplink and downlink and over-temperature of device
- Aluminum-alloy casing has high resistance to dust, water and corroding
- Provided with protection against lightning surge
Application
Working as an auxiliary equipment of BTS to improve the balance between uplink and downlink
Technical specifictions
|
Items |
GSM850 |
GSM900 |
||
|
Working Frequency (Customized) |
Uplink(MHz) |
824~849 |
880~915 |
|
|
Downlink(MHz) |
925~960 |
|||
|
Bandwidth(Customized) |
25MHz |
35MHz |
||
|
Number of Carriers |
1~ 8 Carriers |
|||
|
Maximum Gain |
Uplink |
12¡À1dB |
||
|
Downlink |
15¡À1dB |
|||
|
Gain Adjustable range |
0~15 (Adjustable in 1dB step) |
|||
|
VSWR |
¡Ü1.4 |
|||
|
Noise Figure |
¡Ü1.5 |
|||
|
Flatness in the frequency (dB) |
¡Ü ¡À 1 |
|||
|
Max input power (dBm) |
¡Ý 46 |
|||
|
Max. Output Power (Max. Gain) (Customized) |
Uplink |
13dBm |
||
|
Downlink |
50¡À1 dBm(100w) |
|||
|
Return loss (dB) |
¡Ü -16 |
|||
|
Power supply |
||||
|
Power Consumption |
¡Ü 500w |
|||
|
Working temperature |
-20˚C to +65˚C |
|||
|
Storage temperature |
-40˚C to +85˚C |
|||
|
Humidity |
5%~95% |
|||
|
EMC |
ETS 300 342-3 |
|||
|
Waterproof grade |
IP65 |
|||
|
Material |
Stainless steel and aluminum alloy |
|||
|
Weight |
50kg |
|||
|
Dimension |
690mm x 420mm x 260mm |
|||
|
Connector |
7/16 DIN female |
|||
|
Life of equipment |
MPCA (h) |
¡Ý 100.000 |
||
|
Rectifier (h) |
¡Ý 70.000 |
|||
|
Fan (h) |
¡Ý 50.000 |
|||
|
Other component of Outdoor MCPA (h) |
¡Ý 150.000 |
|||
|
Self-protection feature |
Switch to Bypass mode when power off, Switch to Bypass mode when overheated, beyond output power or VSWR threshold, Re-operate automatically after 10 minutes (when overheated, beyond output power or VSWR threshold) |
|||
|
Control & Monitor feature |
UL output power, DL output power, Temperature Status, LNA Status, PA Status, TX&RX Gain configuration, DC Voltage |
|||
|
Alarm |
Warning when overheated, Warning when beyond output power threshold of Outdoor MCPA, Warning when beyond VSWR threshold, Warning led system (on MCPA) when LNA, PA failed or output overvoltage of Outdoor MCPA |
|||
