GSM&DCS&WCDMA Tri Band Pico Repeater
Location: Home > Product > Pico Repeater > Multi-Band Pico Repeater > GSM&DCS&WCDMA Tri Band Pico Repeater
GSM&DCS&WCDMA Tri Band Pico Repeater
GSM&DCS&WCDMA Tri Band Pico Repeater


GSM&DCS&WCDMA Tri Band Pico Repeater

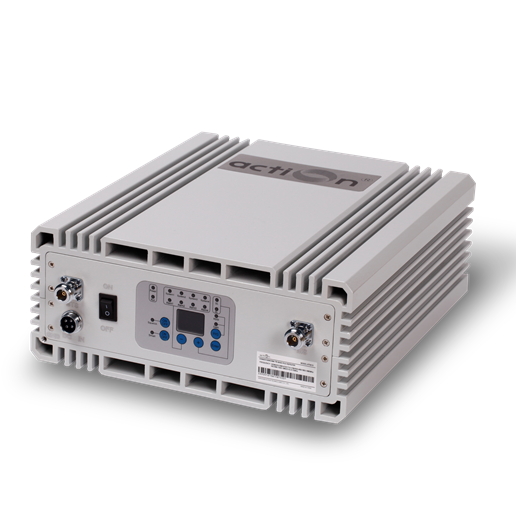

Model: AT5A15



 The GSM900&DCS1800&WCDMA Tri-band Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.

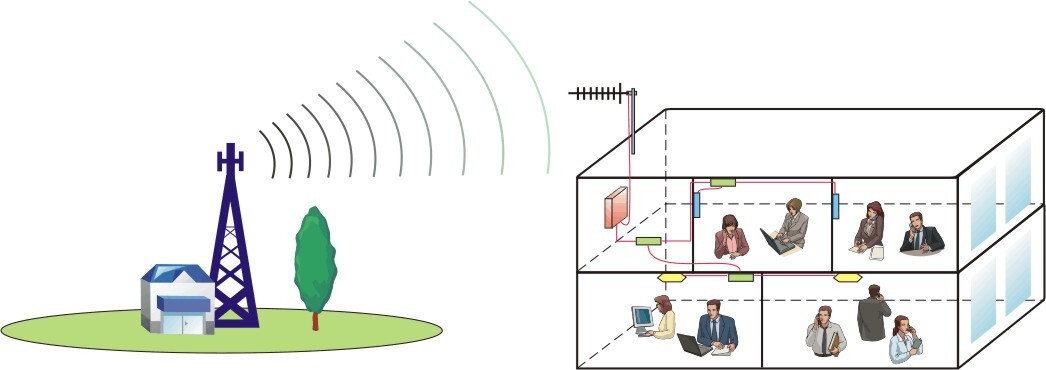

The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.





Features

Application

Specifications

Features

    • Two signal ports with full duplex design
    • High system gain
    • Linear power amplification to effectively suppress inter-modulation and spurious emission
    • Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously
    • Unique color LEDs to indicate power supply and signal level of uplink and downlink
    • Simple installation with external AC/DC adapter

Application

    • To expand signal coverage or fill signal blind area where GSM&DCS&WCDMA tri-band signal is weak or unavailable.
    • Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots,






Technical specifictions

Model

AT5A15

System

GSM900&DCS1800

WCDMA

Frequency Range (Customized)

Uplink

890~915&1710~1785 MHz

1920~1980 MHz

Downlink

935~960&1805~1880 MHz

2110~2170MHz

Maximum Gain

65dB

65dB

Maximum Output Power(Customized)

15dBm

15dBm

AGC control range

20dB

Maximum Input power

(Non-destructive)

0dBm

In-Band Ripple

5dB(P-P)

3 dB @3.84MHz

VSWR

2

Group delay time

1.5s

I/O Impedance

50

Noise Figure

8dB

Out-of-Band Gain

--

Comply with 3GPP TS 25.106 V6.0.0

--

--

--

Spurious Emission

9kHz~1GHz: -36dBm/30kHz

Comply with 3GPP TS 25.106 V6.0.0

1GHz~12.75GHz:-30dBm/30kHz

Error Vector Magnitude (EVM)

--

12.5%

Peak Code Domain Error (PCDE)

--

-35dBm

Third-order Inter-Modulation

-40dBc

RF Connector

N-Type (Female)

Power Consumption

40W

Power Supply

AC100~ 240V

Dimensions

280*268*116mm

Weight

10 kg

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply, Alarm, state

Operating Temperature

-10 ~ +50 C

IP Rating

IP30

Humidity

95%
