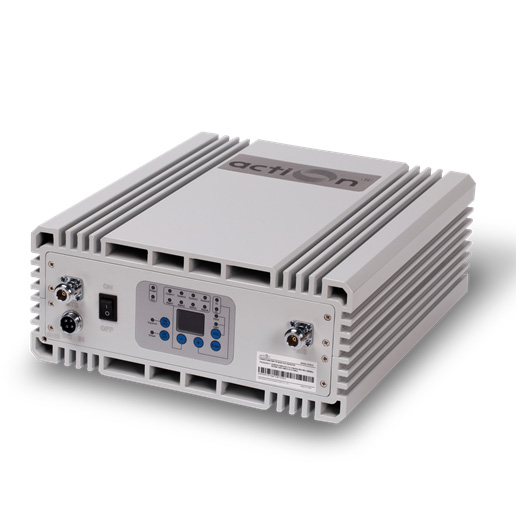

Single Band Pico Repeater
|
|

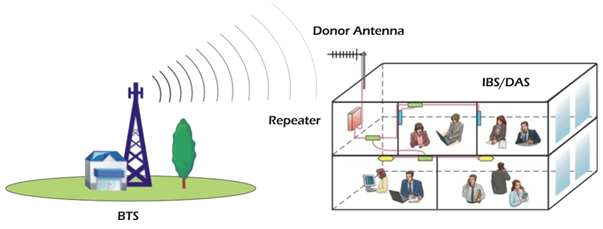

The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features
Application
Specifications
Features
- Two signal ports with full duplex design
- High system gain
- Linear power amplification to effectively suppress inter-modulation and spurious emission
- Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously
- Unique color LEDs to indicate power supply and state and alarm
- Simple installation with external AC/DC adapter
Application
To expand signal coverage or fill signal blind area where signal is weak or unavailable.
Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, ……
Technical specifictions
|
Model |
ATMA27B2 |
|||
|
System |
DCS |
WCDMA2100 |
||
|
Frequency Range |
Uplink |
1950.4~1979.6MHz |
||
|
Downlink |
1820.4~1834.6MHz |
2140.4~2169.6MHz |
||
|
Bandwidth(SAW filter for UL&DL) |
14.2MHz |
29.2MHz |
||
|
Maximum Gain |
Uplink: 85dB; Downlink: 85dB |
|||
|
Maximum Output Power |
Uplink: 24dBm; Downlink: 27dBm |
|||
|
Input Sensitivity |
≤-100dBm |
|||
|
≥0dBm |
||||
|
-80~-30dBm |
||||
|
ALC Range |
≥30dB |
|||
|
ALC Level |
Uplink: ≥25dBm; Downlink: 27dBm |
|||
|
In-Band Ripple |
≤ 2dB |
|||
|
I/O Impedance |
50 Ω |
|||
|
Noise Figure |
≤ 6dB |
|||
|
Group delay time |
≤ 5μs |
|||
|
VSWR |
≤ 1.8 |
|||
|
Manual Gain Adjustment Range |
≥ 31dB |
|||
|
Gain Adjustment Resolution |
1dB |
|||
|
Gain Adjustment Accuracy |
±0.2dB |
|||
|
AGC |
No need |
|||
|
Adjustment Accuracy |
±0.2dB |
|||
|
Spurious Emission |
9kHz~150KHz: ≤ -36dBm/1kHz |
|||
|
150KHz~30MHz:≤-36dBm/10kHz |
||||
|
30MHz~1GHz:≤-36dBm/100kHz |
||||
|
1GHz~12.75GHz:≤-30dBm/1MHz |
||||
|
Uplink Spurious and IMD |
≤27dBm with Max.DL Power and Max.UL Gain |
|||
|
Active Inter-modulation |
Uplink |
≤-43dBc/5MHz@ 2-tone 21dBm |
||
|
Downlink |
≤-46dBc/5MHz@ 2-tone 24dBm |
|||
|
Out of Band Gain |
≤-60dB @2.7MHz＜F_offset＜3.5MHz |
|||
|
≤-45dB @3.5MHz＜F_offset＜7.5MHz |
||||
|
≤-45dB @7.5MHz＜F_offset＜12.5MHz |
||||
|
≤-35dB @12.5MHz＜F_offset |
||||
|
Spectrum Emission Mask |
2.515MHz ≤ f_offset < 2.715MHz: ≤ -22dBm/30kHz |
|||
|
2.715MHz ≤ f_offset < 3.515MHz: ≤ -22dBm/30kHz |
||||
|
3.515MHz ≤ f_offset < 4.0MHz: ≤ -34dBm/30kHz |
||||
|
4.0MHz ≤ f_offset < 8. MHz: ≤ -21dBm/1MHz |
||||
|
8.0 MHz ≤ f_offset < f_offset max.: ≤ -25dBm/1MHz |
||||
|
ACRR |
Offset 5MHz≥33dBc;Offset 10MHz≥33dBc |
|||
|
Frequency Error |
≤ 0.01ppm |
|||
|
EVM |
≤ 7% |
|||
|
PCDE |
≤ -35dB |
|||
|
Auto Recovery |
Support |
|||
|
RF Connector |
N-Type(Female) |
|||
|
Power Consumption |
≤30W |
|||
|
Power Supply |
Input AC100~ 240V |
|||
|
Gain Adjustment |
DIP Switch |
|||
|
Power Amplifier ON/OFF |
DIP Switch |
|||
|
Dimensions |
265mm×318mm×113mm |
|||
|
Weight |
11.5 kg |
|||
|
Remote ON/OFF |
Support |
|||
|
Alarm/Status Monitoring LED |
Power Supply, Output Power, Input Power, Sleep Mode |
|||
|
Operating Temperature |
-10 ~ +55 °C |
|||
|
Relative Humidity Range |
5%~95% |
|||
|
Application |
Indoor(IP52) |
|||
|
Lightning protection |
IEC1312-1 |
|||
|
Remote Control Module |
Wireless Modem For Remote and USB For Local |
|||
|
NMS Monitor Function |
Power supply, output power, gain, Uplink/downlink ATT etc |
|||
