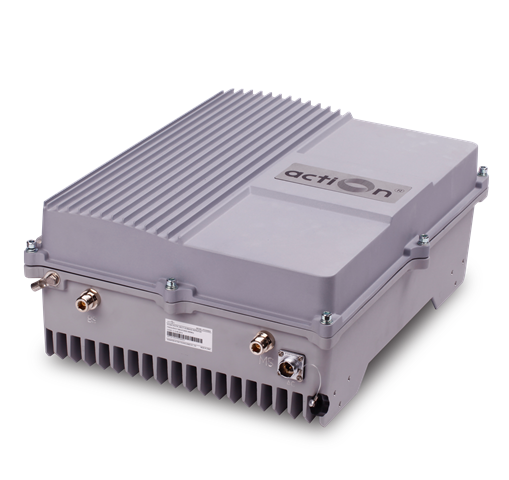

Single Band Pico Repeater
|
|
The MINI Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in GSM/DCS/PCS system. And its easy installation and maintenance can help carrier get fast return.

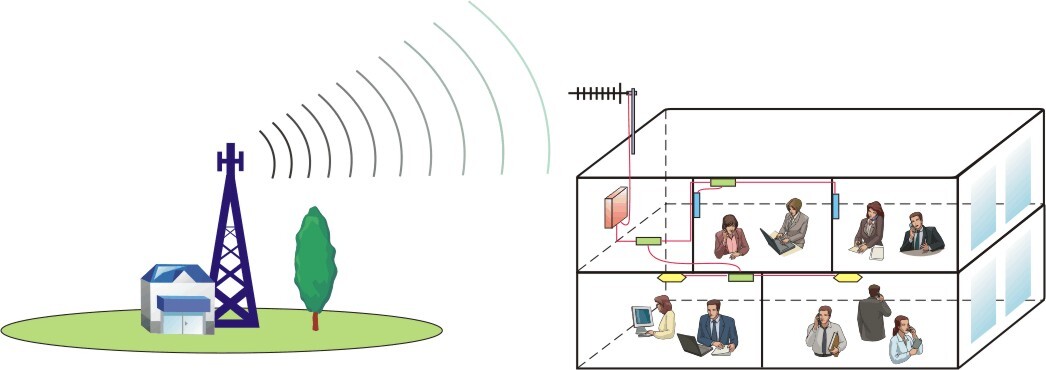

The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
As per operator¡¯s working frequency, two types of Mini Repeater are available:
- The band-selective function can amplify all signals in the whole band (bandwidth is customized).
- The channel-selective function can amplify only the signals transmitted by the customized 1 (2 or 4 or 8) channel
Features
Application
Specifications
Features
- Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
- Highly selective channel selector can process 8 channels simultaneously
- No interference to BTS by adopting linear amplifier with high gain and low noise
- Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
- USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater¡¯s working status and download operational parameters to the repeater
Application
- To expand signal coverage or fill signal blind area where signal is weak or unavailable.
- Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, ¡
- Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, ¡
Technical specifictions
|
Item |
DCS1800 |
PCS1900 |
||
|
Working Frequency (Customized) |
Uplink |
1710~1785 MHz |
1850~1910 MHz |
|
|
Downlink |
1805~1880 MHz |
|||
|
Working Bandwidth |
Customized |
|||
|
Maximum Input Power (Non-Destructive) |
10dBm |
|||
|
Maximum Output Power(Customized) |
30 dBm |
|||
|
Maximum Gain |
¡Ý 85dB |
|||
|
Gain Adjustment Range |
1~31 dB @ step of 1 dB |
|||
|
Voltage Standing Wave Ratio |
||||
|
Noise Figure |
¡Ü 5dB |
|||
|
In-band Ripple |
¡Ü 3dB |
|||
|
Spurious Emission |
Within working band |
¡Ü -15dBm/30kHz |
||
|
Out of working band (∆f > 2.5MHz) |
9kHz~1GHz: ¡Ü -36dBm/30kHz |
|||
|
1GHz~12.75GHz: ¡Ü -30dBm/30kHz |
||||
|
Third-order Inter-Modulation |
¡Ü -45dBc / 30kHz (measured under rated output power) |
|||
|
System Delay |
¡Ü5¦ÌSec |
|||
|
I/O Impedance |
50¦¸ |
|||
|
RF Connector |
N-Type (Female) / Changeable / bottom of casing |
|||
|
Temperature Range |
Operation: -25¡ãC ~ + 55¡ãC / Storage: -30¡ãC ~ +60¡ãC |
|||
|
Relative Humidity Range |
¡Ü 95% (non condensing) |
|||
|
Power Supply (customized) |
||||
|
Power consumption |
¡Ü80W |
|||
|
Backup Power Supply (optional) |
4 hours |
|||
|
Casing Level |
IP65 |
|||
|
Dimensions |
460mm X 360mm X 150mm |
|||
|
Weight |
¡Ü15kg |
|||
|
Control Connector |
USB port for local / remote |
|||
|
NMS Monitoring Function(Optional) |
Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc; Remote control such as turn on/off, increasing/decreasing output power etc; Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
|||
