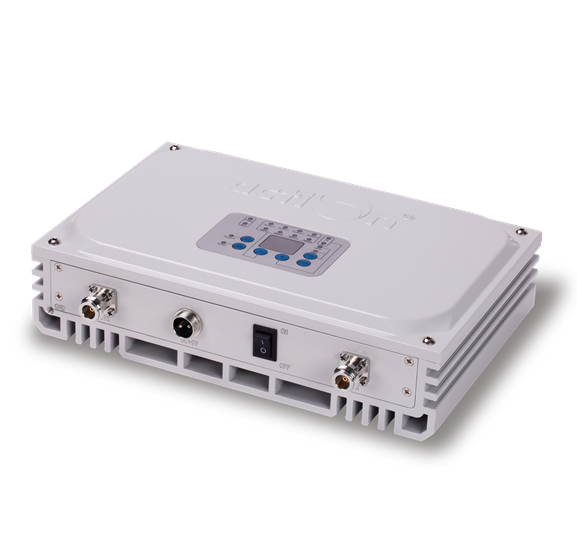

Single Band Pico Repeater
|
|
The Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.

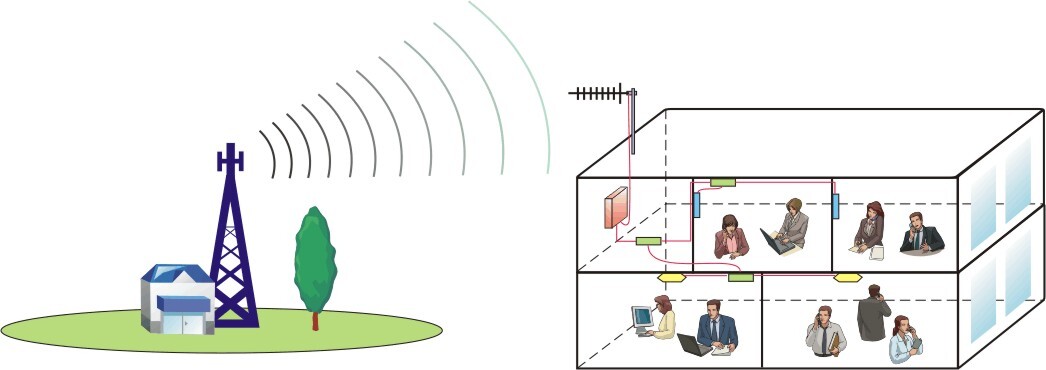

The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
Features
Application
Specifications
Features
- Two signal ports with full duplex design
-
High system gain
-
Linear power amplification to effectively suppress inter-modulation and spurious emission
-
Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously
-
Unique color LEDs to indicate power supply and state and alarm
-
Simple installation with external AC/DC adapter
Application
- To expand signal coverage or fill signal blind area where BTS signal is weak or unavailable.
- Indoor : Hotels, exhibition centers, basements, shopping malls, offices, parking lots,...
Technical specifictions
|
Items |
LTE2600 |
||
|
Frequency Range (Customized) |
Uplink |
2500~2570MHz |
|
|
Downlink |
2620~2690MHz |
||
|
Working bandwidth (Customized) |
59.2MHz |
||
|
Maximum Gain |
¡Ý65dB |
||
|
Maximum Output Power(Customized) |
20dBm |
||
|
AGC control range |
¡Ý20dB |
||
|
Maximum Input power(Non-destructive) |
¡Ü0dBm |
||
|
In-Band Ripple |
|||
|
VSWR |
¡Ü2 |
||
|
Group delay time |
¡Ü 5¦Ìs |
||
|
I/O Impedance |
50 ¦¸ |
||
|
Noise Figure |
¡Ü8dB |
||
|
Duplex Model |
FDD |
||
|
Spurious Emission |
Within working band |
||
|
Out of working band (∆f > 2.5MHz) |
9kHz~1GHz: ¡Ü -36dBm/30kHz 1GHz~12.75GHz:¡Ü-30dBm/30kHz |
||
|
Third-order Inter-Modulation |
¡Ü -40dBc |
||
|
RF Connector |
N-Type (Female) |
||
|
Power Consumption |
|||
|
Power Supply |
AC100~ 240V |
||
|
Dimensions |
295*191*76mm |
||
|
Weight |
¡Ü 2.5 kg |
||
|
Alarm Monitoring System |
Alarm for uplink self-oscillation |
||
|
Indication LED |
Power supply, Alarm, state |
||
|
Operating Temperature |
-10 ~ +50 ¡ãC |
||
|
IP Rating |
IP30 |
||
|
Humidity |
¡Ü95% |
||
