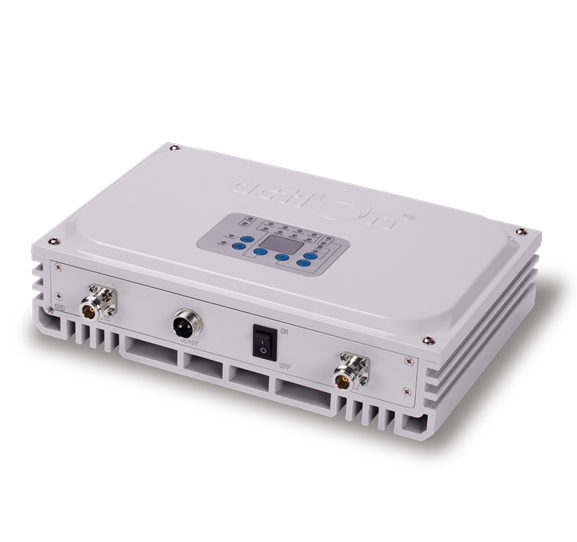

 WCDMA Pico Repeater
WCDMA Pico Repeater


Single Band Pico Repeater of WCDMA
Model: ATWA17




The Pico Repeater provides an affordable solution to solve the indoor signal coverage problems due to signal fading and attenuation caused by architecture obstacles. And its easy installation and maintenance can help carrier get fast return.

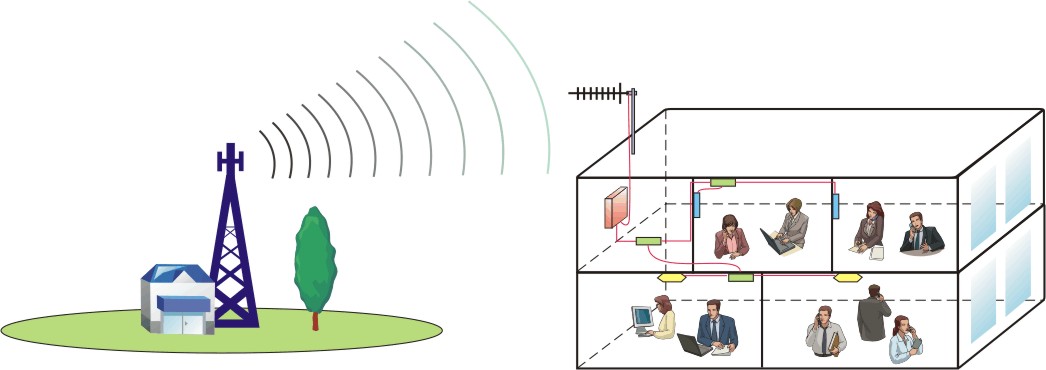

The repeater is working as a relay between the BTS and mobiles. It picks up the strongest signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Indoor Signal Distribution System to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.


Features

Application

Specifications

Features

  • Two signal ports with full duplex design
  • High system gain
  • Linear power amplification to effectively suppress inter-modulation and spurious emission.
  • Smart Automatic Level Control (ALC) ensures output level stable and adjustable continuously.
  • Unique color LEDs to indicate power supply and signal level of uplink and downlink.
  • Simple installation with external AC/DC adapter

Application

    • To expand signal coverage or fill signal blind area where BTS signal is weak or unavailable.
    • Indoor : Hotels, exhibition centers, basements, shopping malls, offices, parking lots,...




Technical specifictions

Model

ATWA17

System

WCDMA

Frequency

Uplink(Customized)

1920-1980MHz

Downlink(Customized)

2110-2170MHz

Maximum Gain

65 dB

Maximum Output Power(Customized)

17dBm

AGC control range

20dB

Maximum Input power

(Non-destructive)

0dBm

In-Band Ripple

5 dB

I/O Impedance

50

Noise Figure

6dB

Group delay time

5s

VSWR

2.0

Spurious Emission

9kHz~1GHz: -36dBm/30kHz

1GHz~12.75GHz:-30dBm/30kHz

Third-order Inter-Modulation

-40dBc

RF Connector

N-Type (Female)

Power Consumption

20W

Power Supply

AC100~ 240V

Dimensions

186*122*65mm

Weight

1 kg

Alarm Monitoring System

Alarm for uplink self-oscillation

Indication LED

Power supply, Alarm, state

Operating Temperature

-10 ~ +50 C

IP Rating

IP30

Relative Humidity Range

95%
