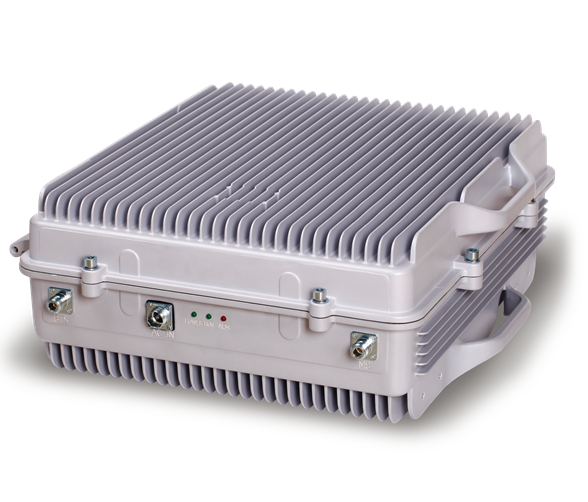

ICS Repeater
|
|
The Dual Band RF Repeater (RFR) is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in dual band system. And its easy installation and maintenance can help carrier get fast return.

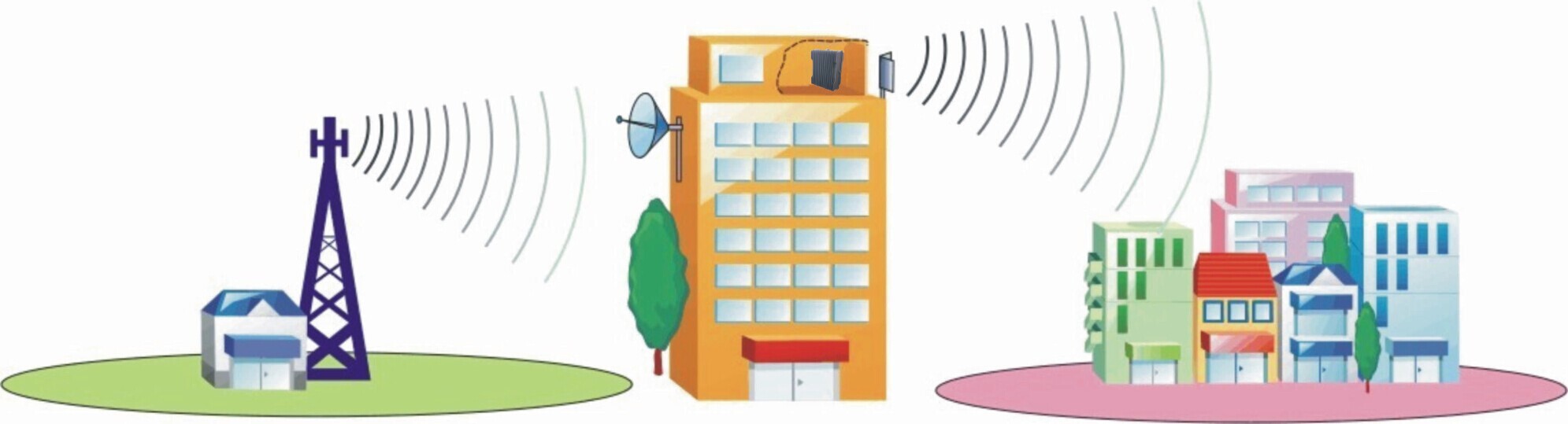

The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
As per operator¡¯s requirement for working frequency, two types of RFR are available:
- Band-Selective RF Repeater: to amplify all signals in the whole band (bandwidth is customized)
- Channel-Selective RF Repeater: to amplify only the signals transmitted by the customized channels
Features
Application
Specifications
Features
- Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
- Highly selective channel selector can process up to 8 channels simultaneously
- No interference to BTS by adopting linear amplifier with high gain and low noise
- Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
- USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater¡¯s working status and download operational parameters to the repeater
Application
- To expand signal coverage or fill signal blind area where signal is weak or unavailable.
- Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, ¡
- Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, ¡
Technical specifictions
|
Items |
GSM850/GSM900 |
WCDMA |
|||
|
Working Frequency (Customized) |
Uplink |
824~849 MHz /880~915 MHz |
1920-1980 MHz |
||
|
Downlink |
869~894 MHz /925~960 MHz |
2110-2170 MHz |
|||
|
Maximum Input Power (Non-Destructive) |
10dBm |
||||
|
Maximum Output Power(Customized) |
43dBm |
||||
|
Maximum Gain |
¡Ý 85dB |
||||
|
Gain Adjustment Range |
1~31 dB @ step of 1 dB |
||||
|
Voltage Standing Wave Ratio |
< 1.5 |
< 1.4 |
|||
|
Noise Figure |
¡Ü 5dB |
¡Ü 5dB |
|||
|
Spurious Emission |
Within working band |
¡Ü -15dBm/30kHz |
Comply with 3GPP TS 25.106 V6.0.0 |
||
|
Out of working band (∆f > 2.5MHz) |
9kHz~1GHz: ¡Ü -36dBm/30kHz |
||||
|
1GHz~12.75GHz: ¡Ü -30dBm/30kHz |
|||||
|
Third-order Inter-Modulation |
¡Ü -45dBc / 30kHz (measured under rated output power) |
Comply with 3GPP TS 25.106 V6.0.0 |
|||
|
In-band Ripple |
¡Ü 3dB |
¡Ü 3dB p-p / 3.84 MHz |
|||
|
Peak Code Domain Error (PCDE) |
-- |
¡Ü -35dB |
|||
|
ACRR |
P ¡Ý 31 dBm |
-- |
(Offset 5MHz) ¡Ý 33dB |
||
|
P ¡Ý 31 dBm |
(Offset 10MHz) ¡Ý 33dB |
||||
|
P < 31 dBm |
(Offset 5MHz) ¡Ý 20dB |
||||
|
P <31 dBm |
(Offset 10MHz) ¡Ý 20dB |
||||
|
System Delay |
¡Ü 5.0¦ÌSec |
||||
|
Out-of-Band Gain |
2.7 ¡Ü f offset < 3.5 MHz |
-- |
¡Ü 60dB |
||
|
3.5 ¡Ü f offset < 7.5 MHz |
¡Ü 45dB |
||||
|
7.5 ¡Ü f offset < 12.5 MHz |
¡Ü 45dB |
||||
|
12.5 ¡Ü f offset |
¡Ü 30dB |
||||
|
I/O Impedance |
50¦¸ |
||||
|
RF Connector |
N-Type (Female) / Changeable / bottom of casing |
||||
|
Phase Distortion |
-- |
¡Ü 6.1¡ã (RMS) & ¡Ü 24.5¡ã (Peak) |
|||
|
Error Vector Magnitude (EVM) |
-- |
¡Ü 12.5% |
|||
|
Temperature Range |
Operation:-25¡ãC~ +55¡ãC/ Storage:-30¡ãC~ +60¡ãC |
||||
|
Relative Humidity Range |
¡Ü 95% (non condensing) |
||||
|
Power Supply (customized) |
DC-48V or AC110V or AC220V,50/60Hz |
||||
|
Power consumption |
¡Ü 300W |
||||
|
Backup Power Supply (optional) |
4 hours |
||||
|
Casing Level |
IP65 |
||||
|
Dimensions |
500*440*235mm |
||||
|
Weight |
50kg |
||||
|
Control Connector |
USB for local / remote |
||||
|
NMS Monitoring Function(optional) |
Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc; Remote control such as turn on/off, increasing/decreasing output power, etc; Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
||||
