ICS Repeater
|
|

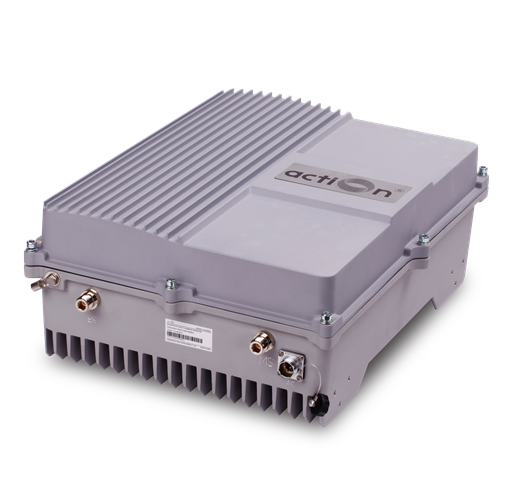

The TETRA RF Repeater (RFR) is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in mobile system. And its easy installation and maintenance can help carrier get fast return.
The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
The band-selective function can amplify all signals in the whole band (bandwidth is customized).
Features
Application
Specifications
Features
- Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
- No interference to BTS by adopting linear amplifier with high gain and low noise
- Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
- USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater¡¯s working status and download operational parameters to the repeater
Application
- To expand signal coverage or enhance signal blind area where TETRA signal is weak or unavailable.
- Public Safety, Transportation, Utilities, Government, Military, PAMR, Commercial & Industry, Oil & Gas.
Technical specifictions
|
Items |
Specifications |
||||
|
Frequency Range(Customized) |
Uplink |
Downlink |
|||
|
380~385 MHz |
390~395 MHz |
||||
|
Maximum Output Power(Customized) |
30dBm |
43dBm |
|||
|
Maximum Gain |
90dB¡À2dB |
90dB¡À2dB |
|||
|
Bandwidth(Customized) |
5 MHz |
||||
|
In-band flatness |
¡Ü3dB |
||||
|
Auto Level Control (ALC) |
¡Ü2dB |
||||
|
Noise Figure |
¡Ü 5dB |
||||
|
Gain Adjustment Range |
1~31 dB @ step of 1 dB |
||||
|
VSWR |
¡Ü1.5 |
||||
|
Phase P-P error |
¡Ü20 |
||||
|
RMS phase error |
¡Ü5 |
||||
|
System Delay |
¡Ü5.0 us |
||||
|
Spurious Emission |
In-Band |
¡Ü-22dBm/30KHz |
|||
|
Out-Band |
9KHz-1GHz |
¡Ü-36dBm/30KHz |
|||
|
1GHz |
¡Ü-30dBm/30KHz |
||||
|
Third-order Inter-Modulation |
In-Band |
¡Ü -45dBc / 30kHz |
¡Ü -40dBc / 30kHz |
||
|
9KHz~1GHz: ¡Ü-36dBm/30KHz |
|||||
|
Out-Band |
1GHz~12.75GHz: ¡Ü-36dBm/30KHz |
||||
|
Output/input resistance |
50 ¦¸ |
||||
|
RF Connector |
N-Type (Female) |
||||
|
Working temperature |
-25¡ãC ~+55¡ãC |
||||
|
Relative humidity |
5~95% RH |
||||
|
Power Supply (customized) |
|||||
|
Dimensions |
428mm X 328mm X 220mm |
||||
|
Weight |
30kg |
||||
|
Backup Power Supply (optional) |
4 hours |
||||
|
Casing Level |
IP65 |
||||
|
NMS Monitoring Parameters (optional) |
UL/DL Power, UL/DL Max Gain, RSSI, ATT, Channel No, UL/DL Output ALC, Power alarm Threshold, UL/DL PA Temperature etc |
||||
|
NMS Controlled Parameters (optional) |
Channel No., ATT, Output Power Thresholds UL/DL, UL/DL Output ALC , PA Switch ,Alarm Report can be enable /disable etc |
||||
