ICS Repeater
|
|

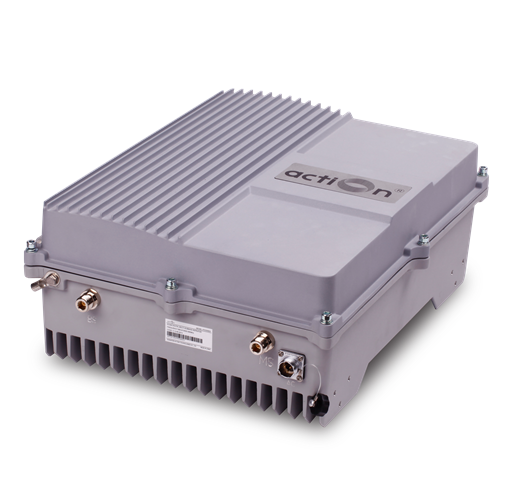

The LTE2600 RF Repeater (RFR) is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in LTE2600 system. And its easy installation and maintenance can help carrier get fast return.

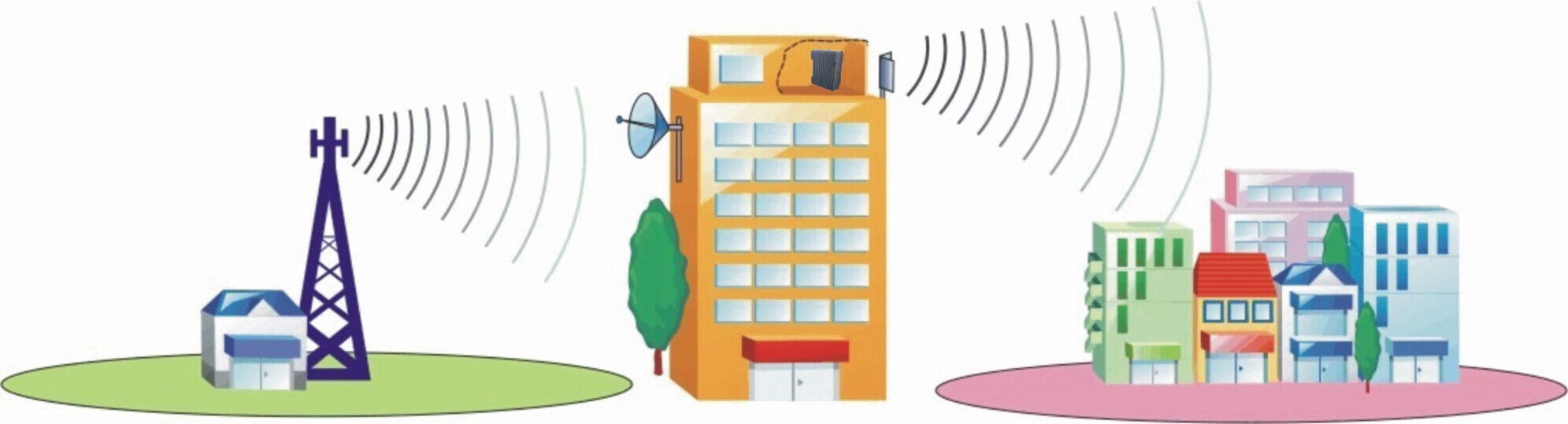

The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.
As per operator¡¯s working frequency, two types of RFR are available:
The band-selective function can amplify all signals in the whole band (bandwidth is customized).
The channel-selective function can amplify only the signals transmitted by the customized 1 (up to 4) channel
Features
Application
Specifications
Features
- Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
- Highly selective channel selector can process 4 channels simultaneously
- No interference to BTS by adopting linear amplifier with high gain and low noise
- Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
- USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater¡¯s working status and download operational parameters to the repeater
Application
- To expand signal coverage or fill signal blind area where signal is weak or unavailable.
- Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, ¡
- Indoor: Hotels, exhibition centers, basements, shopping malls, offices, parking lots, ¡
Technical specifictions
|
Items |
LTE2600 |
||
|
Working Frequency (Customized) |
Uplink |
2500~2570MHz |
|
|
Downlink |
2620~2690MHz |
||
|
Maximum Output Power (Customized) |
43dBm |
||
|
Maximum Gain |
¡Ý 90dB |
||
|
ALC&AGC |
20 dB(minimum) |
||
|
Manual Gain Control |
31dB in step of 1dB |
||
|
Duplex Model |
Frequency Division Duplex |
||
|
Voltage Standing Wave Ratio |
< 1.5 |
||
|
Maximum Input power(Non-destructive) |
+10dBm |
||
|
Spurious Emission |
¡Ü -30dBm |
||
|
In-band Ripple |
¡Ü ¡À3dB |
||
|
Noise Figure |
¡Ü 6dB |
||
|
System Delay |
¡Ü 5.0¦ÌSec |
||
|
ACRR |
|||
|
P ¡Ý 31 dBm |
|||
|
P < 31 dBm |
|||
|
P <31 dBm |
|||
|
I/O Impedance |
50¦¸ |
||
|
RF Connector |
N-Type (Female) |
||
|
Temperature Range |
Operation: -25¡ãC~ + 55¡ãC |
||
|
Power Supply (customized) |
|||
|
Dimensions |
428*328*220mm |
||
|
Weight |
¡Ü30kg |
||
|
NMS Monitoring Function(Optional) |
Real-time alarm for door status, temperature, power supply, LNA, VSWR, self-oscillation, etc; Remote control such as turn on/off, increasing/decreasing output power, changing channel frequency for channel selective repeater and frequency shift repeater etc; Real-time status for output/input power, UL/DL gain, all status of repeater etc. |
||
