ICS Repeater
|
|

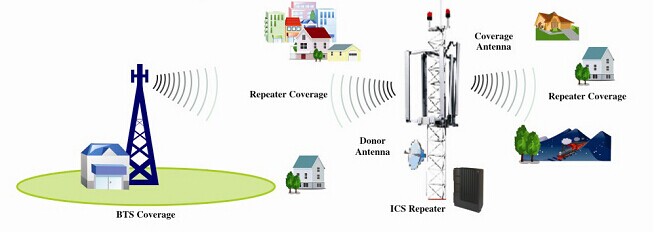

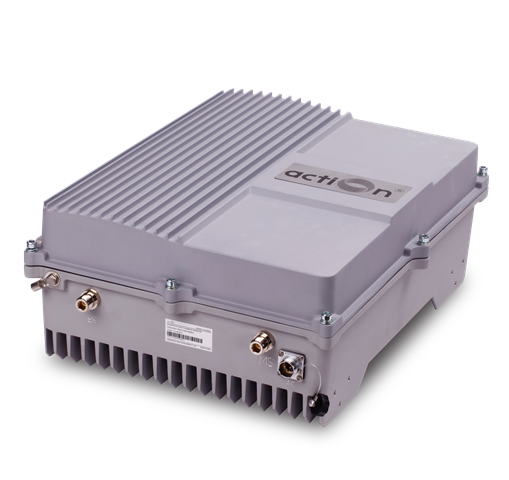

The ICS Repeater is designed to provide a more cost-effective solution than adding a new Base Transceiver Station (BTS) to improve signal coverage and communication quality in GSM/DCS/PCS system. And its easy installation and maintenance can help carriers get fast return.The repeater is working as a relay between the BTS and mobiles. It receives the low-power signal from BTS via the Donor Antenna, linearly amplifies the signal and then retransmits it via the Coverage Antenna to the weak/blind coverage area. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction
Features
Application
Specifications
Features
- Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
- Highly selective digital channel selector can process 12 channels simultaneously
- Real Time Interference Signal Cancellation (Multi-path Fading, Feed-Back signal)
- Adopting filter with highly selectivity and low insertion loss eliminates interference between uplink and downlink
- USB port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeater¡¯s working status and download operational parameters to the repeater
Application
- To expand signal coverage or fill signal blind area where signal is weak or unavailable.
- Outdoor: Airports, tourism regions, golf courses, tunnels, factories, mining districts, villages, ¡
Technical specifictions
|
Items |
DCS1800 |
PCS1900 |
|
|
Working Frequency (Customized) |
Uplink |
1710~1785MHz |
1850~1910MHz |
|
Downlink |
1930~1990MHz |
||
|
Maximum Output power(Customized) |
43dBm |
||
|
Maximum Gain |
100dB |
||
|
Gain Adjustment Range |
1~31 dB @ step of 1 dB |
||
|
Operating Maximum Gain |
¡Ý Antenna Isolation + 10dB |
||
|
No. of Channels |
12 |
||
|
Power Amplifier Oscillation Protection |
Interference Cancellation System |
||
|
Cancellation Feedback Signals ¨C Maximum Sizes of Window |
¡Ý 6¦ÌSec |
||
|
Interference Cancellation Range |
¡Ý 25dB |
||
|
Frequency Error |
¡Ü 0.05ppm |
||
|
Voltage Standing Wave Ratio |
¡Ü 1.5 |
||
|
Noise Figure |
¡Ü 6dB |
||
|
In-band Ripple |
¡Ü 3dB |
||
|
Maximum Input Power (Non-Destructive) |
10dBm |
||
|
Spurious Emission |
¡Ü -36dBm |
||
|
Third-order Inter-modulation |
¡Ü -45dBc/30KHz(measured under rated output power) |
||
|
System Delay |
¡Ü 5.0¦ÌSec |
||
|
I/O Impedance |
50¦¸ |
||
|
RF Connector |
N-Type (Female) |
||
|
Temperature Range |
Operation: -25¡ãC~ +55¡ãC/ Storage:-30¡ãC~ +60¡ãC |
||
|
Relative Humidity Range |
¡Ü 95% (non condensing) |
||
|
Environment Class |
IP65 |
||
|
Dimensions |
610mm X445mmX215mm |
||
|
Weight |
¡Ü 35Kg |
||
|
Power Supply (customized) |
|||
|
Backup Power Supply (optional) |
4 hours |
||
|
NMS Monitoring Parameters(optional) |
UL/DL Power, UL/DL Max Gain, RSSI, ATT, Channel No, UL/DL Output ALC, Power alarm Threshold, UL/DL PA Temperature etc |
||
|
NMS Controlled Parameters(optional) |
Channel No., ATT, Output Power Thresholds UL/DL, UL/DL Output ALC , PA Switch ,Alarm Report can be enable /disable etc |
||
