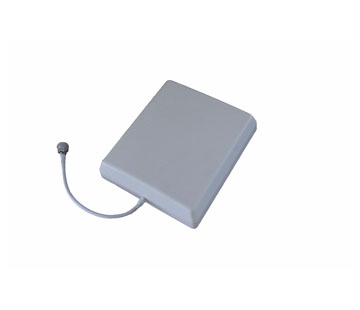

Indoor Panel Antenna
Frequency Range (MHz):698~960/1710~2700
Features
Application
Specifications
Features
Indoor Panel Antenna
Frequency Range (MHz):698~960/1710~2700
Application
Technical specifictions
|
Frequency Range (MHz) |
698~960/1710~2700 |
|
VSWR |
698~800MHz:¡Ü1.8 |
|
801~960MHz:¡Ü1.5 |
|
|
1710~2700MHz:¡Ü1.5 |
|
|
Input Impedance(¦¸) |
50 |
|
Gain(dBi) |
698-960MHz: 5¡À0.5 |
|
1710~2170MHz :8¡À0.5 |
|
|
2171~2700MHz :6¡À0.5 |
|
|
Polarization |
Vertical |
|
Horizontal Beamwidth(¡ã) |
698-800MHz: 115¡À15
|
|
801~960MHz: 95¡À15 |
|
|
1710~2170MHz:75¡À15 |
|
|
2171~2700MHz:95¡À15 |
|
|
Max power(W) |
50 |
|
Connector Type |
N-Female |
|
Lightning Protection |
DC ground |
|
Dimension (mm) |
210¡Á180¡Á44 |
|
Weight(g) |
500 |
|
Rated Wind Velocity(km/h) |
210 |
|
Radome material |
ABS |
|
Cable(mm) |
260 |
|
Working Temperature(¡ãC ) |
-40~+60 |
