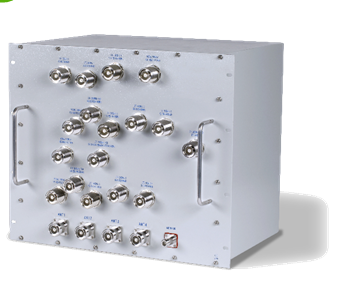

POI
|
|
Features
Application
Specifications
Features
Application
Technical specifictions
|
Type |
||
|
Operating Frequency |
3 Ports LTE700 |
703-748MHz/758-803MHz |
|
3 Ports LTE900 |
885-915MHz/930-960MHz |
|
|
3 Ports LTE1800 |
1710-1785MHz/1805-1880MHz |
|
|
4 Port WCDMA2100 |
1920-1980MHz/2110-2170MHz |
|
|
1 Port LTE2600 FDD |
2500-2520MHz/2620-2640MHz |
|
|
1 Port LTE2600 FDD |
2520-2540MHz/2640-26640MHz; 2560-2570MHz/2680-2690MHz |
|
|
1 Port LTE2600 FDD |
2540-2560MHz/2660-2680MHz |
|
|
1 Port LTE2600 TDD |
2575-2615MHz |
|
|
Insertion Loss |
¡Ü 10.5dB For LTE2600; ¡Ü 8.5dB For LTE703MHz~WCDMA2170 |
|
|
Isolation |
Same band ¡Ý25 dB, Different bands¡Ý80dB,FDD/TDD¡Ý110dB |
|
|
Return Loss |
¡Ý 18dB |
|
|
PIM3 |
¡Ü-150 dBc(@ 2 x 20 W |
|
|
Power Handling |
150W |
|
|
Connector Type |
DIN female |
|
|
Application |
Indoor |
|
|
Impedance |
50 ¦¸ |
|
|
Operating Temperature |
-25¡ãC to +55¡ãC |
|
|
Lightning Protection |
3kA,10/350 us pulse |
|
|
Relative Humidity |
5% - 95% |
|
|
Number of BTS Ports |
17 |
|
|
Number of Antenna Ports |
4 |
|
|
Monitor Port |
1 with -40~-30dBc Coupling Level |
|
|
Dimensions |
440x320x399mm |
|
|
Weight |
39Kg |
|
