Penta-band Active DAS
Penta-band Active DAS



With the development of mobile communication technology, more and more new communication technologies(such as 4G) are being used nowadays. As a result, telecom operators have to run multiple systems simultaneously and provide multi-system services(2G/3G/4G) in one coverage area, resulting in the difficulty of installation and transmission of equipments. For the above mentioned reasons, Multi-Band Active DAS is designed to solve the problems of weak mobile signal in the place that is far away from the Base Transceiver Station(BTS) and has fiber optic cable network underground. The system consists of two parts: Master Unit and Remote Unit. The Master unit captures the BTS signal via direct coupler closed to BTS, then converts it into optic signal and transmits the amplified signal to the Remote Unit via fiber optic cable. The Remote unit will reconvert the optic signal into RF signal and provide the signal to the areas where network coverage is inadequate. And the mobile signal is also amplified and retransmitted to the BTS via the opposite direction.

Features

Application

Specifications

Features

      Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding.

      Tx/Rx control and alarm messages can be transmitted via one fiber optic cable.

      Stable and improved signal transmission quality.

      One Master Unit can support up to 4 Remote Units to maximize utilization of fiber optic cable.

      RJ45 port provides a link to a notebook for local supervision or to the built-in wireless modem to communicate with the NMS (Network Management System) that can remotely supervise repeaters working status and download operational parameters to the Active DAS.

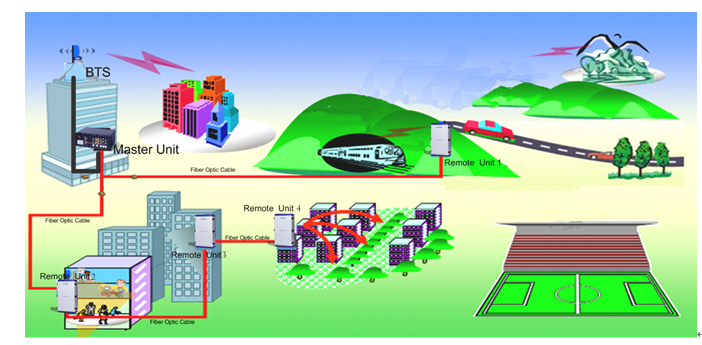

Application


Technical specifictions

Item

Master Unit

Remote Unit

700MHz/900MHz/1800MHz/2100MHz/2600MHz

Working Frequency

Uplink

703~748MHz/885~915MHz/1710~1785MHz/1920~1980MHz/2500~2570MHz

Downlink

758~803MHz/930~960MHz/1805~1880MHz/2110~2170MHz/2620~2690MHz

Transmission Distance

20km

Maximum Input Power

10dBm(Non-Destructive)

Maximum Output Power

432dBm for each band

System Gain(MU+RU)

453dB

Gain Adjustment Range

0~31dB@Step of 1dB

VSWR

1.5

Noise Figure@1RU Connection

5dB

Third-order Inter-modulation

3GPP TS 25.143(R10),3GPP TS 36 143(R10)

Spurious Emission

3GPP TS 25.143(R10),3GPP TS 36 143(R10)

System Delay

5us

MU Extensible Support the RU Quantity

4 units(Max.)

Optical Output Power

03dBm@1310nm/03dBm@1550nm

Fiber Type/Number

Single mode

Optical Output Power

03dBm@1310nm/ݡ3dBm@1550nm

Optical Receiver Sensitivity

-15dBm

Optical Connector Type

4xFC/APC

1xLC/UPC

RF Connector Type

5xN-Female

1xDIN-Female

I/O Impedance

50

Operating Temperature

-25~55

Dimensions

482.6x222.25x290mm

980x420x230mm

Weight

20Kg

55Kg

Application

Indoor(IP30)

Outdoor(IP65)

Power Supply(Customized)

AC220V, 50/60Hz

Local Control

1.USB or RJ45 Port;2.WiFi hotspot

Remote Monitoring Module

Wireless Modem

NMS Monitoring

Real-time alarm for door status, temperature, power supply, VSWR, etc;
Remote control such as turn on/off, increasing/decreasing output power etc;
Real-time status for output/input power, UL/DL gain, all status of Active DAS etc.
