Outdoor High Power Jammer_600W
Outdoor High Power Jammer_600W


Outdoor High Power Mobile Signal Jammer_600W

ATJ6-600-5


The Mobile Signal Jammer can help to block the mobile signals for any area that are confronted with cellular communication problems: for example, loud incoming call rings, loud telephone conversations, secret leaking and bomb explosion through Mobiles, electromagnetic radiation to gas station, chemical material warehouse and hospital equipments. This product is suitable in executive offices, board meetings, conferences, seminars, libraries, cinemas, religious places, public transport, concert halls, restaurants and educational institutions, Prisons, etc.

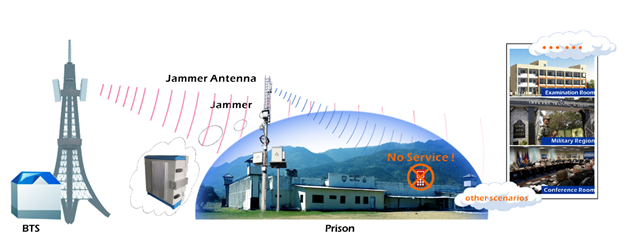

 Mobile Signal Jammer transmits strong power radio signals to cut-off communications between Mobileand cellular base-stations. It does not interfere with any communications other than cellular within the defined regulated zone.

Upon activating Mobile Signal Jammer, all idle phones will indicate NO SERVICE. Incoming calls are blocked as if the cellular phone is OFF. When Mobile Signal Jammer is turned off, all cellular phones will automatically re-establish communications and provide full service.





Features

Application

Specifications

Features

    • Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
    • Special technology to prevent interference between each frequency band;
    • Only interfere downlink frequency of mobile systemwithout disturb normally working of Base Stations
    • Frequency bands and output power selectable
    • Each frequency band controlled by independent RF ON/OFF switches
    • Power of each frequency band can be adjustable independently
    • Easy operation and installation

Application

    Prisons and other large sensitive locations such as military or government buildings, etc.


Technical specifictions

Items

Specifications

Output Port

Cellular 850MHz

Cellular 850MHz

GSM900MHz

PCS1900MHz

PCS1900MHz

WCDMA2100MHz

Shield Band of Frequency

851~872MHz

872~894MHz

935~959MHz

1930~1990MHz

1930~1990MHz

2110~2170MHz

Output Power

850 MHz

850 MHz

900 MHz

1900 MHz

1900 MHz

2100 MHz

50dBm/100W

50dBm/100W

50dBm/100W

50dBm/100W

50dBm/100W

50dBm/100W

Total RF Output Power

600W

Power Adjustable

5-class of power adjustable on each band independently

Power Supply

DC-48V

 Weigh

50kg(Including brackets)

Running Temperature

(-20 to +55) Celsius Degree

Power consumption

2100W

MTBF

50,000 Hours

Dimensions

615590270 mm

Accessories

6 pcs jumpers and 6 antenna ports needed
