Outdoor High Power Jammer_400W
Outdoor High Power Jammer_400W


Outdoor High Power Mobile Signal Jammer_400W

ATJ4-400-1


The Mobile Signal Jammer can help to block the mobile signals for any area that are confronted with cellular communication problems: for example, loud incoming call rings, loud telephone conversations, secret leaking and bomb explosion through Mobiles, electromagnetic radiation to gas station, chemical material warehouse and hospital equipments. This product is suitable in executive offices, board meetings, conferences, seminars, libraries, cinemas, religious places, public transport, concert halls, restaurants and educational institutions, Prisons, etc.

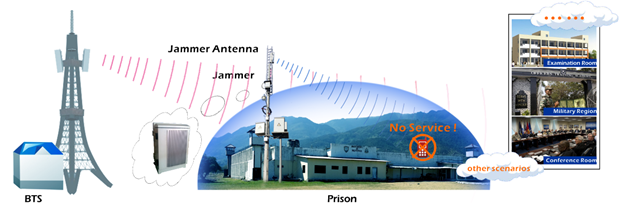

Mobile Signal Jammer transmits strong power radio signals to cut-off communications between Mobileand cellular base-stations. It does not interfere with any communications other than cellular within the defined regulated zone.

Upon activating Mobile Signal Jammer, all idle phones will indicate ¡°NO SERVICE¡±. Incoming calls are blocked as if the cellular phone is OFF. When Mobile Signal Jammer is turned off, all cellular phones will automatically re-establish communications and provide full service.





Features

Application

Specifications

Features

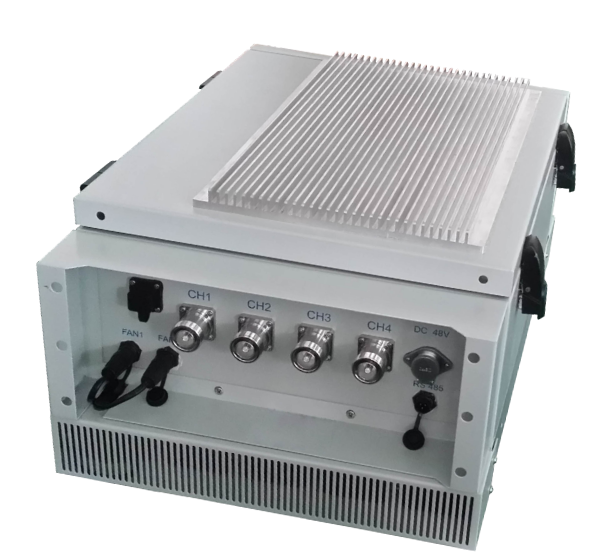

    • Aluminum-alloy casing with IP65 protection has high resistance to dust, water and corroding
    • Special technology to prevent interference between each frequency band;
    • Only interfere downlink frequency of mobile system£¬without disturb normally working of Base Stations
    • Frequency bands and output power selectable
    • Each frequency band controlled by independent RF ON/OFF switches
    • Power of each frequency band can be adjustable independently
    • Easy operation and installation

Application

     Prisons and other large sensitive locations such as military or government buildings, etc.




Technical specifictions



Items

Specifications

Output Port

Cellular 850MHz

PCS 1900MHz

LTE AWS 2100MHz

GPS 1600MHz

Shield Band of Frequency

869~894MHz

1930~1990MHz

2110~2170MHz

1525~1650MHz

Output Power

850 MHz

1900 MHz

2100 MHz

1600 MHz

50dBm/100W

50dBm/100W

50dBm/100W

50dBm/100W

Total RF Output Power

400W

Power Adjustable

5-class of power adjustable on each band independently

Power Supply

DC-48V

 Weigh

35kg

Running Temperature

(-20 to +55) Celsius Degree

Power consumption

1400W

MTBF

50,000 Hours

Dimensions

580¡Á430¡Á270 mm

Accessories

4 pcs jumpers and 4 antenna ports needed
