Name

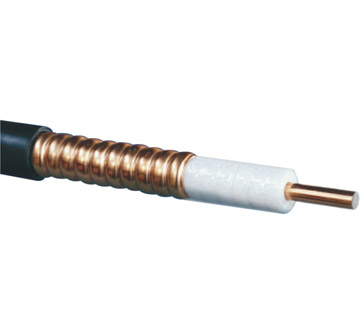

1/2”  RF Cable

Conductor

4.8 mm copper-clad aluminum wire

Dielectric

13.8 mm Physical Foam Polyethylene

Outer conductor

1 mm Corrugated copper tube

Jacketing options

15.7 mm Black PE

Mechanical and Electrical Characteristics

Impedance

50±1.0 Ohms

Capacitance

75.8(pF/m)

Velocity Factor

0.88

Return Loss (V.S.W.R.)

<1.25

Minimum Bending Radius

Single bending: 70 mm, Repeated bending: 125 mm

Attenuation[@68°F. (20°C)]

Frequency(MHz)

Power Rating(kW)

Maximum(dB/100m)

100

3.49

2.14

450

1.59

4.75

800

1.17

6.46

900

1.10

6.87

1000

1.04

7.28

2000

0.71

10.7

2500

0.627

12.1

3000

0.565

13.4
