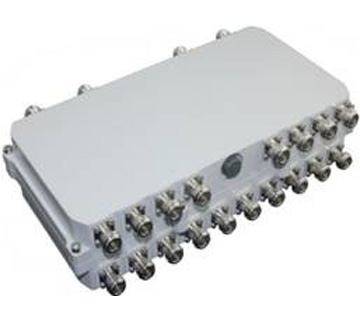

Combiner
|
|

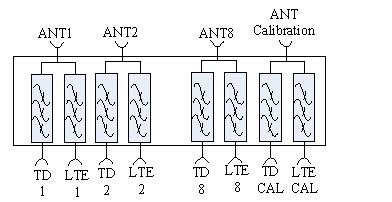

Schematic Diagram:
Features
Application
Specifications
Features

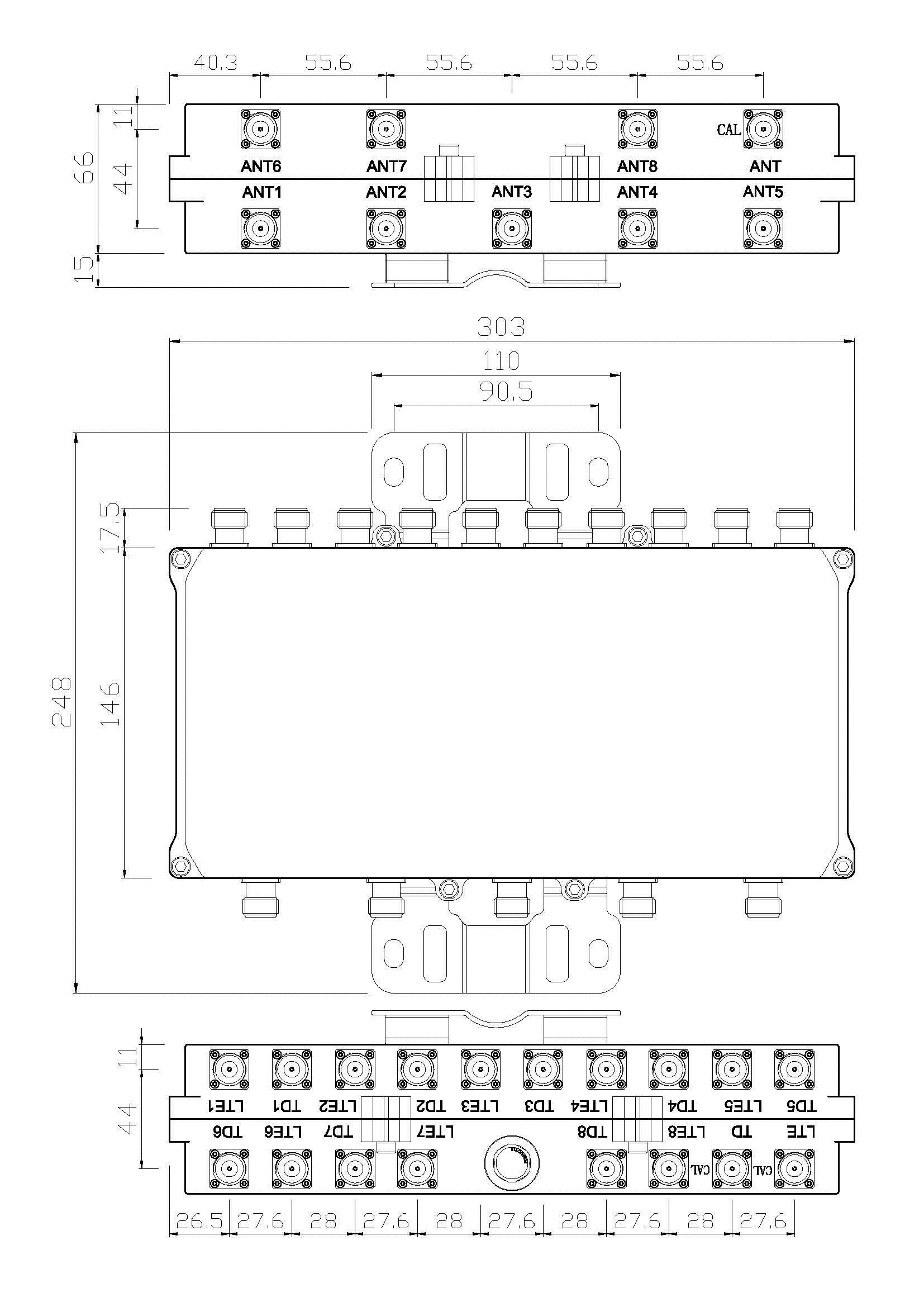

Outline Drawing:
Application
Technical specifictions
|
Type |
18 Ports In- 9Ports Out |
|
Operating Frequency Band |
1880~2025 MHz/2500~2690 MHz |
|
Insertion Loss |
|
|
Ripple in Band |
¡Ü 0.4dB |
|
VSWR |
¡Ü 1.25 |
|
Rejection |
¡Ý80.0 dB |
|
Inter-modulation (3rd order) |
<-140 dBc(@ 2 x 20 W |
|
Power Handling (W) |
<200W |
|
DC/AISG path |
NA |
|
Lightning protection |
NA |
|
Connector Type |
N Female |
|
Application |
Indoor or outdoor(IP66) |
|
Impedance |
50 ¦¸ |
|
Operating temperature range |
-25¡ãC to +65¡ãC |
|
Relative humidity |
5 - 95% |
|
Wight |
¡Ü4Kg |
