Type

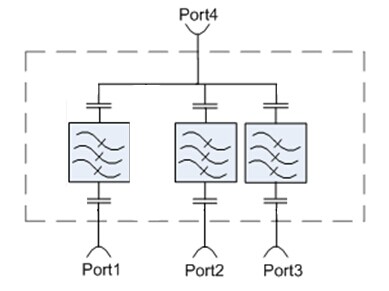

3 Ports In- 1Port Out

Port

Port 1

Port 2

Port 3

Operating Frequency

Band1

800~960 MHz

1710~2170 MHz

2400~2500 MHz

Band2

800~960 MHz

1710~2170 MHz

2500~2700 MHz

Insertion Loss

≤0.5dB

≤0.5dB

≤0.5dB

In-Band Ripple

≤0.3dB

VSWR

≤ 1.22

Rejection

≥80.0 dB

Inter-modulation (3rd order)(Customized)

≤-140 dBc(@ 2 x 20 W)

Power Handling

200W

Connector Type

N female

Application

Indoor

MTBF

10 Million Hours

Impedance

50 Ω

Operating Temperature (°C)

-25°C to +65°C

Relative humidity

5% - 95%

Wight

<1.4Kg
