Type

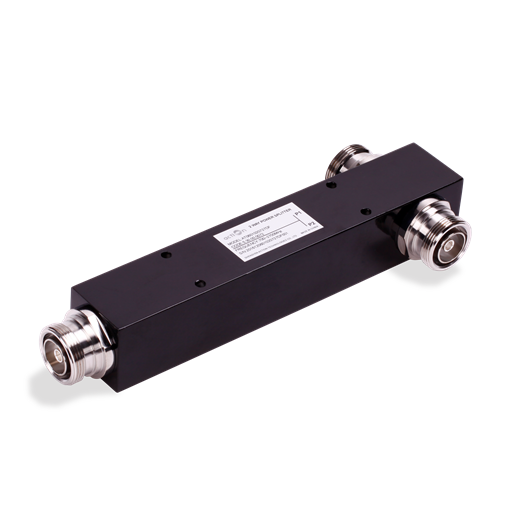

2-Way

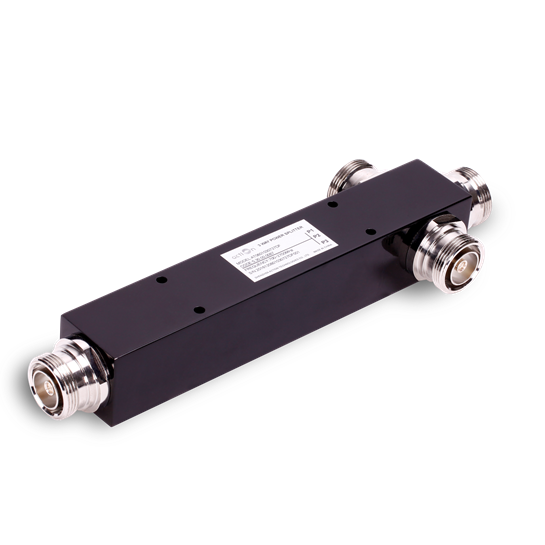

3-Way

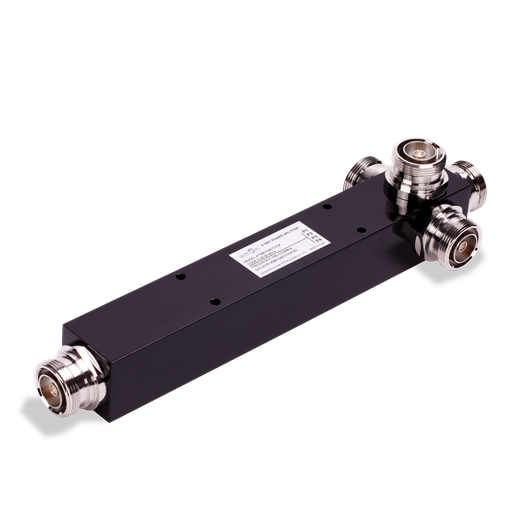

4-Way

Frequency Range

698~2700 MHz

Insertion Loss

<0.05dB

Split Loss

≤ 3.3 dB

≤5.2 dB

≤ 6.4 dB

Ripple

≤ 0.3 dB

≤ 0.4 dB

≤ 0.5 dB

V.S.W.R.

< 1.2

Impedance

50 Ω

Average Power, Maximum

500 W

Peak Power, Maximum

3 KW

PIM

<-150dBc@2*43dBm

Connector

7/16 DIN Female

Operating Temperature

-30~+75 °C

Relative Humidity

5~95 %

Application

Indoor or Outdoor(IP66)

Dimensions

227x76x76 mm

250x76x76 mm

250x98x76 mm

Weight

1.5Kg

1.8Kg

2.0Kg
