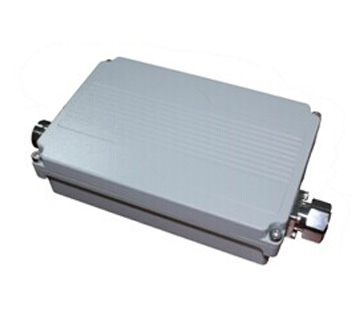

Combiner
|
|
Schematic Diagram:
Features
Application
Specifications
Features

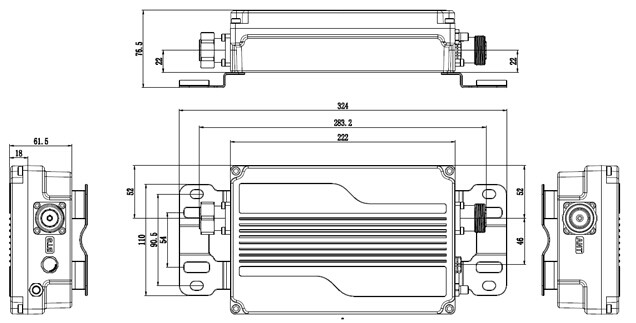

Outline Drawing for Single Unit:

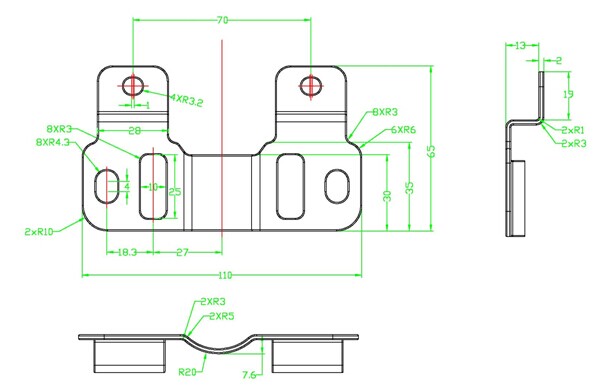

Mounting bracket(2PCS):
Application
Technical specifictions
|
Type |
1Ports In- 1Port Out |
|
|
Pass Band Range(Customized) |
Uplink |
Downlink |
|
890~915 MHz |
935~960 MHz |
|
|
Insertion Loss |
4.0dB@890-890.5MHz 2.5 dB@890.5-891MHz 1.5 dB@891-892MHz 1.0 dB@892-893MHz 0.8 dB@893-905MHz 0.6 dB@905-915MHz 0.6dB@920-930MHz 0. 6 dB@ 935-960 MHz |
|
|
VSWR |
¡Ü-20dB/1.22 |
|
|
Rejection |
¡Ý50dB @ DC-869MHz ¡Ý30dB @ 869-888.75MHz ¡Ý30dB @ 888.75-889MHz |
|
|
Inter-modulation (3rd order) |
<-150dBc(@ 2 x 20 W |
|
|
Power Handling (W) |
<400W |
|
|
Impedance |
50¦¸ |
|
|
DC/AISG transparency |
By-pass(max.2500 mA) |
|
|
Lightning protection |
3 KA,10/350 ¦Ìs pulse |
|
|
Connector Type |
DIN male-DIN female |
|
|
Dimensions |
283*147*61.5mm |
|
|
Application |
Indoor or Outdoor(IP66) |
|
|
Operating Temperature (¡ãC) |
-10¡ãC to +65¡ãC |
|
|
Mounting |
Wall mounting: With 4 Screws/Mast mounting: With addition clamp set |
|
|
Wight |
2.4Kg |
|
