Combiner
|
|
Features
Application
Specifications
Features
Application
Technical specifictions
|
Model |

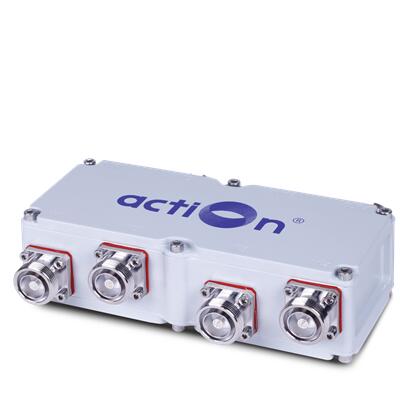

Hybrid Combiner-700~2700(4In to 4Out) |
|||
|
Ports |
Port1 |
Port2 |
Port3 |
Port4 |
|
Frequency Range (MHz) |
698~2700 |
698~2700 |
698~2700 |
|
|
VSWR |
¡Ü1.22 |
|||
|
Insertion Loss |
¡Ü6.9 dB |
|||
|
Isolation |
¡Ý 25dB |
|||
|
Inter modulation (3rd order) |
¡Ü -150 dBc @ 2 x 20 W |
|||
|
Power Handling (W) |
500W |
|||
|
DC/AISG transparency |
DC path IN 1¡úOUT 1, IN 2¡úOUT 2 DC path IN 3¡úOUT 3, IN 4¡úOUT 4 (max. 6.5 AAISG 2.0 conform) |
|||
|
Connector Type |
8pcs 7-16 DIN Female |
|||
|
Application |
Indoor or Outdoor(IP66) |
|||
|
Operating Temperature |
-10¡ãC to +65¡ãC |
|||
|
Relative humidity |
5% - 95% |
|||
|
Impedance |
50 ¦¸ |
|||
|
Dimension |
250*155*60mm |
|||
|
Weight |
2.2Kg |
|||
|
Packing |
1 Pce/ box |
|||
