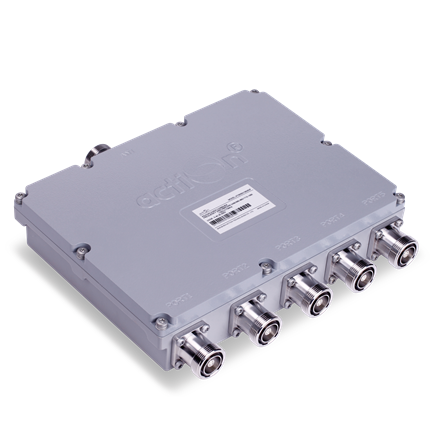

Combiner
|
|

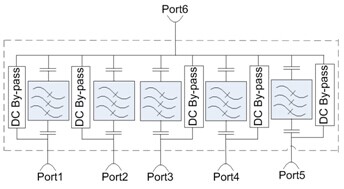

Schematic Diagram:
Features
Application
Specifications
Features

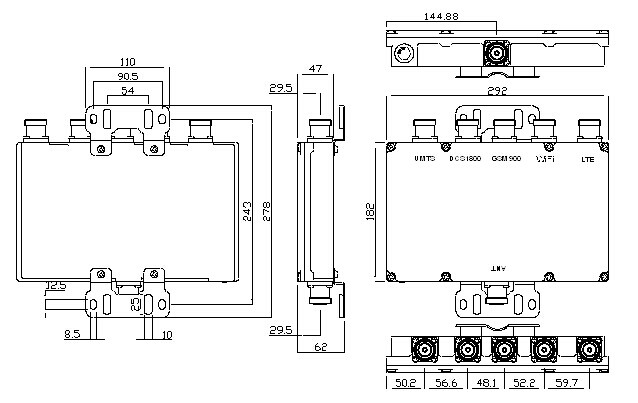

Outline Drawing for Single Unit:
Application

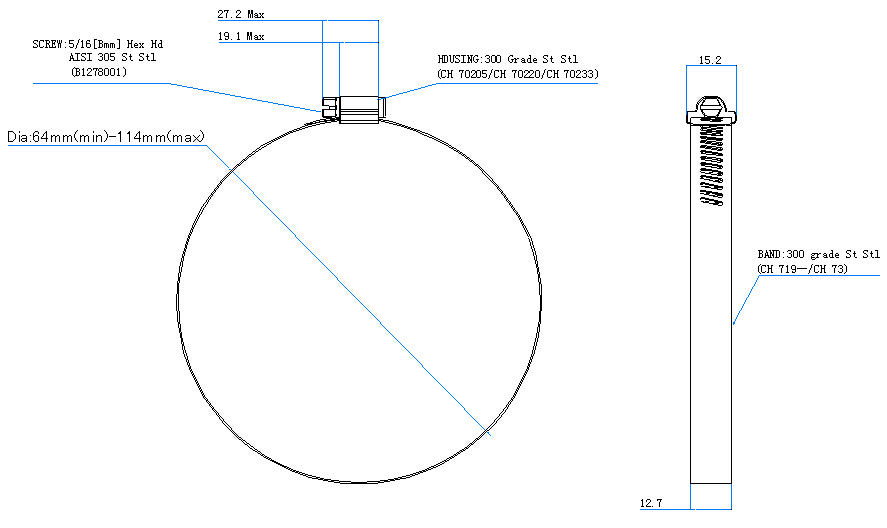

Clamp Set:
"A"Dia:64mm(min)-114mm(max)
Technical specifictions
|
Type |
|||||
|
Port |
Port 1 |
Port 2 |
Port 4 |
Port 3 |
|
|
Operating Frequency Band |
2500~2690 MHz |
2400~2490(2483.5) MHz |
1710~1880 MHz |
1920~2170 MHz |
|
|
License Band |
LTE2600 |
WiFi2400 |
GSM900 |
DCS1800 |
UMTS2100 |
|
VSWR |
|||||
|
Insertion Loss |
|||||
|
Isolation Between Paths, minimum |
50.0 dB |
||||
|
Inter-modulation (3rd order) |
|||||
|
Power Handling (W) |
<300W |
||||
|
Connector Type |
DIN female |
||||
|
Application |
Indoor or Outdoor(IP66) |
||||
|
Impedance |
50 ¦¸ |
||||
|
Operating Temperature (¡ãC) |
-40¡ãC to +60¡ãC |
||||
|
DC/AISG Transparency |
By-pass (Max. 2.5A) |
By-pass (Max. 2.5A) |
|||
|
Lightning Protection |
3kA,10/350 us pulse |
||||
|
Mounting |
Wall mounting: With 4 Screws/Mast mounting: With addition clamp set |
||||
|
Wight |
Single Unit 5Kg /Double Unit 10Kg |
||||
