Type

4 Ports In- 1Port Out

Port

Port 1

Port 2

Port 3

Port 3

Operating Frequency Band

790~960 MHz

1710~1880 MHz

1920~2170 MHz

2400~2690 MHz

VSWR

< 1.3

Insertion Loss

<0.25 dB@( 790 – 960 MHz)

<0.3 dB@(1710 – 1880 MHz)

<0.3 dB@(1920 – 2170 MHz)

<0.3 dB@(2500 – 2690 MHz)

Isolation Between Bands

>50.0 dB

Inter-modulation (3rd order)

<-150dBc(@ 2 x 20 W

Power Handling (W)

<300W

Connector Type

DIN female

Application

Indoor or Outdoor(IP67)

Impedance

50 Ω

Operating Temperature (°C)

-40 °C to +60 °C

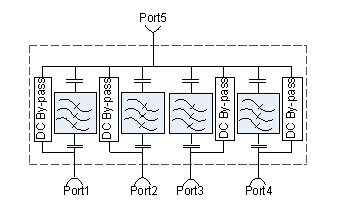

DC/AISG Transparency

By-pass (Max. 2.5A)

Lightning Protection

3kA,10/350 us pulse

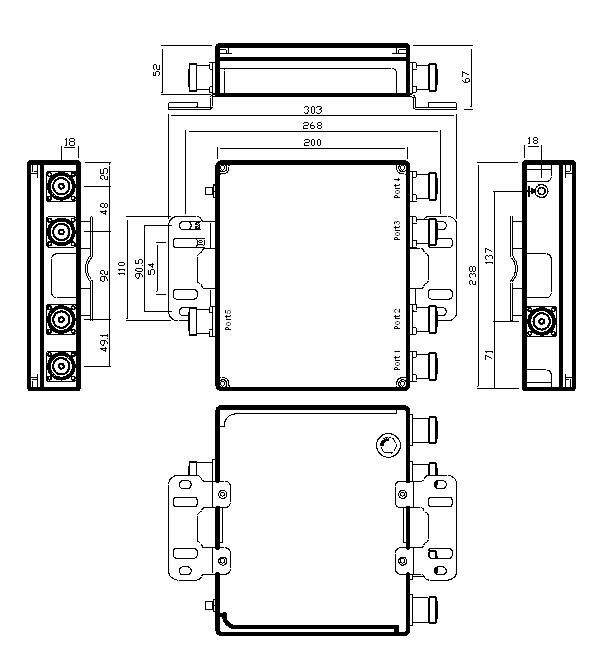

Mounting

Wall mounting: With 4 Screws/Mast mounting: With addition clamp set

Wight

<4Kg
