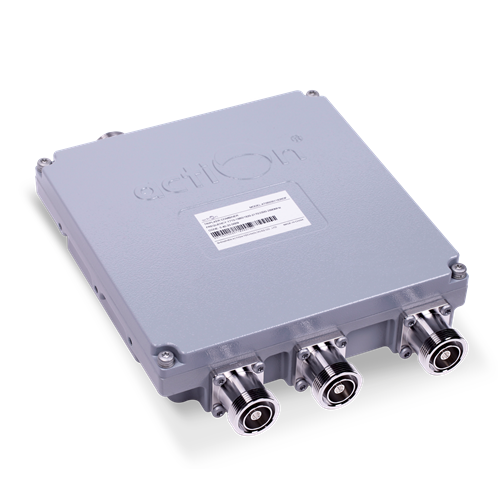

Type

3 Ports In- 1Port Out

Port

Port 1

Port 2

Port 3

Operating Frequency Band

790~960 MHz

1710~1880 MHz

1920~2170 MHz

License Band

GSM900

DCS1800

UMTS2100

VSWR

≤1.22

Insertion Loss

≤0.3dB

Isolation Between Bands

>50.0 dB(880~960 MHz/1710~1880 MHz)

>50.0 dB(880~960 MHz/1920~2170 MHz)

>50.0 dB(1710~1880 MHz/1920~2170MHz)

Inter-modulation (3rd order)

<-150 dBc(@ 2 x 20 W

Power Handling (W)

<300W

Connector Type

DIN female

Application

Indoor or Outdoor(IP66)

Impedance

50 Ω

Operating Temperature (°C)

-40°C to +60°C

DC/AISG Transparency

By-pass (Max. 2.5A)

By-pass (Max. 2.5A)

By-pass (Max. 2.5A)

Lightning Protection

3kA,10/350 us pulse

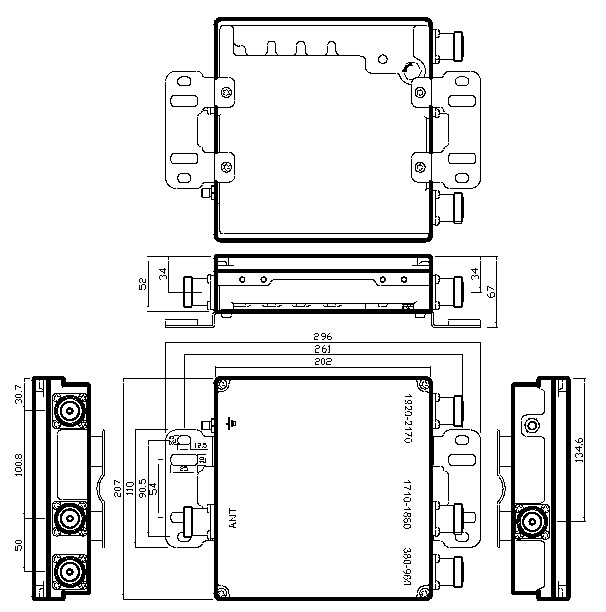

Mounting

Wall mounting: With 4 Screws/Mast mounting: With addition clamp set

Wight

<4Kg
