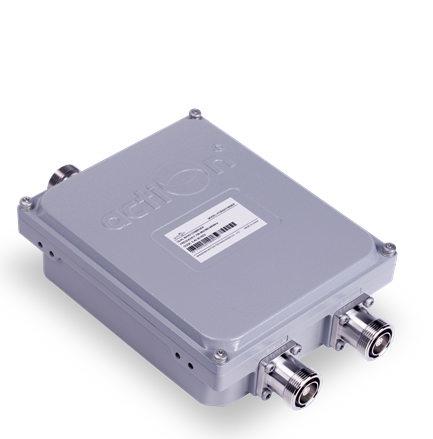

Combiner
|
|
Schematic Diagram:
Features
Application
Specifications
Features

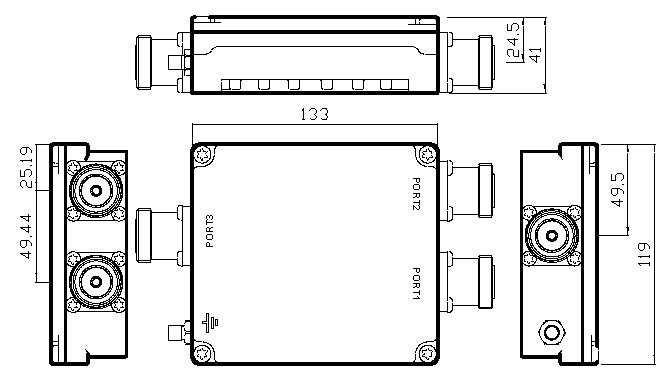

Outline Drawing:
Application

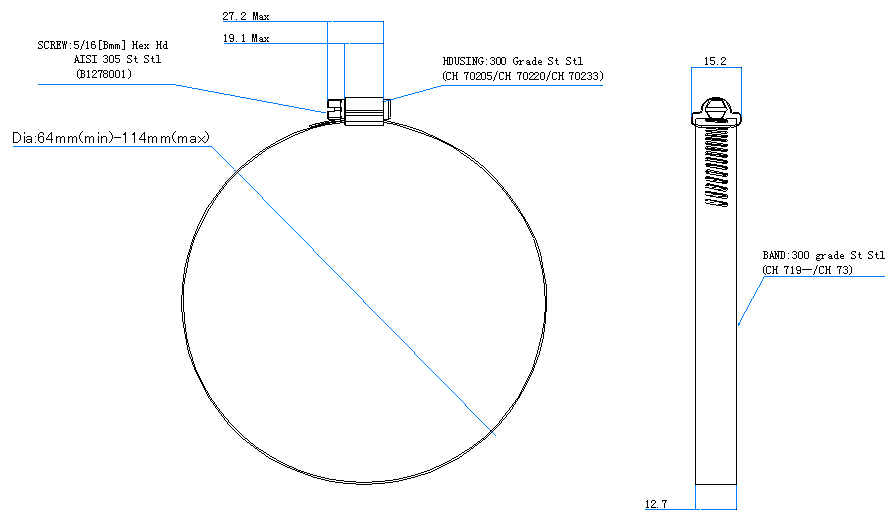

Clamp Set:
"A"Dia:64mm(min)-114mm(max)
Technical specifictions
|
Port |
Port 1 |
Port 2 |
|
Operating Frequency Band |
380~2170 MHz |
2400~2700 MHz |
|
Insertion loss |
¡Ü0.4dB |
|
|
VSWR |
¡Ü1.22 |
|
|
Isolation Between Paths |
>50.0 dB |
|
|
Inter-modulation (3rd order) |
<-153dBc(@ 2 x 20 W |
|
|
Power Handling (W) |
300W@380-2170 200W@2400-2700 |
|
|
DC/AISG transparency Port1 ¡û¡ú Port3 Port2 ¡û¡ú Port3 |
BY-Pass(max.2500mA) BY-Pass(max.2500mA) |
|
|
Connector Type |
DIN female |
|
|
Application |
Indoor or Outdoor(IP67) |
|
|
Impedance |
50 ¦¸ |
|
|
Operating Temperature (¡ãC) |
-10¡ãC to +55¡ãC |
|
|
Mounting |
Wall mounting: With 4 Screws/Mast mounting: With addition clamp set |
|
|
Wight |
<1.36Kg |
|
