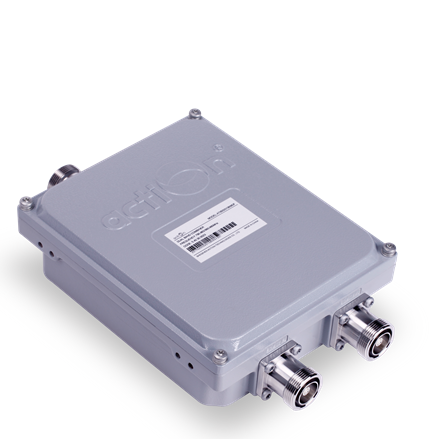

Combiner
|
|
Schematic Diagram:
Features
Application
Specifications
Features

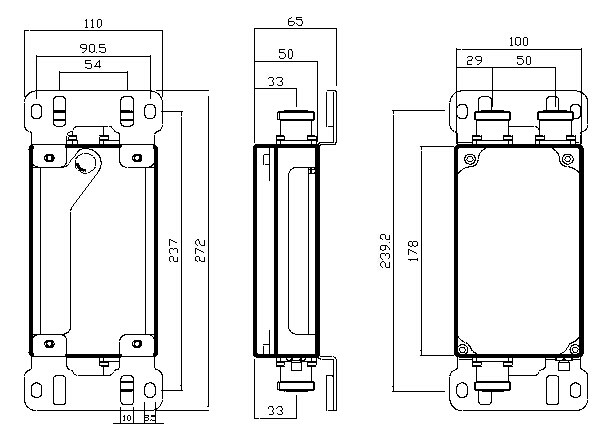

Outline Drawing:
Application

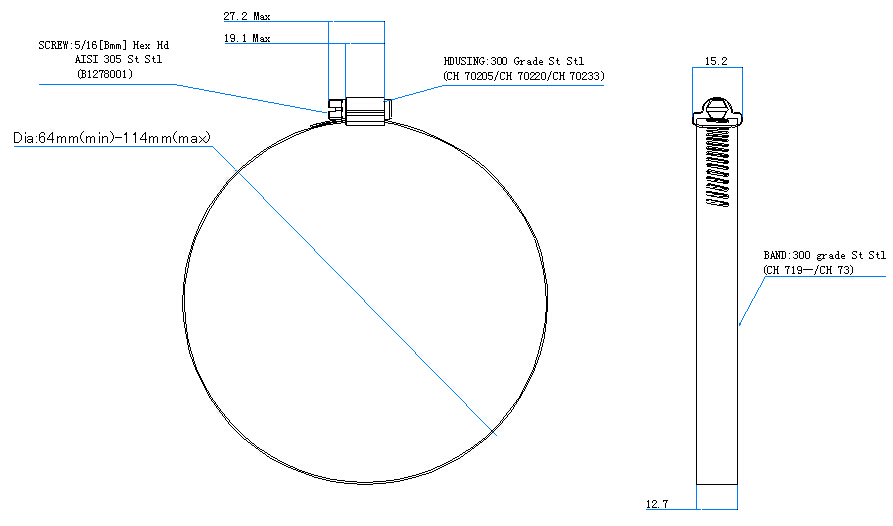

Clamp Set:
"A"Dia:64mm(min)-114mm(max)
Technical specifictions
|
Type |
||
|
Port |
Port 1 |
Port 2 |
|
Operating Frequency Band |
1710~2170 MHz |
|
|
Insertion Loss |
¡Ü0.3 dB |
|
|
VSWR |
¡Ü1.22 |
|
|
Isolation Between Paths |
¡Ý50.0 dB |
|
|
Inter-modulation (3rd order) |
||
|
Power Handling |
¡Ü300W |
|
|
DC/AISG |
DC Path thru each port to Ant. Rated at 3A Max. |
|
|
Lighting Protection |
3KA£»10/350us pulse |
|
|
Connector Type |
DIN female |
|
|
Application |
Indoor or Outdoor(IP66) |
|
|
Impedance |
50 ¦¸ |
|
|
Operating Temperature (¡ãC) |
-40¡ãC to +60¡ãC |
|
|
Relative humidity |
5% - 95% |
|
|
Wight |
1.3Kg |
|
