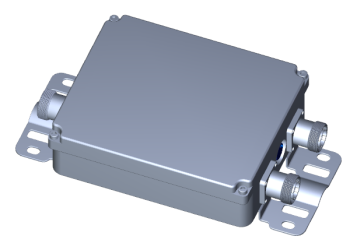

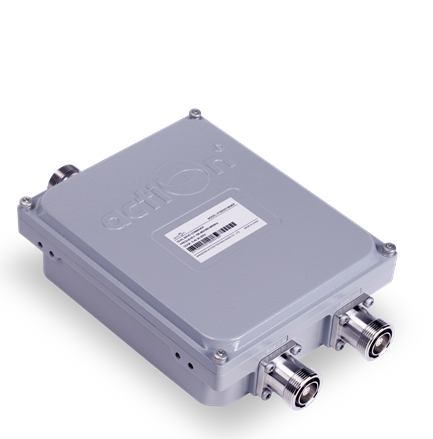

Dual Band Combiner
Dual Band Combiner


Dual Band Combiner

Model: AT0502010809DF/AT0502011821DF



Schematic Diagram:





Features

Application

Specifications

Features

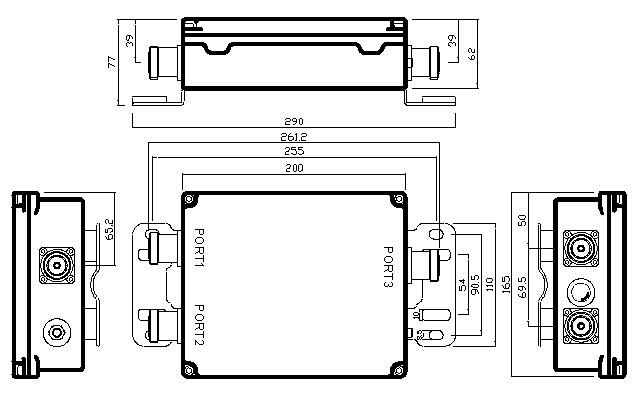

    Outline Drawing for Single Unit:

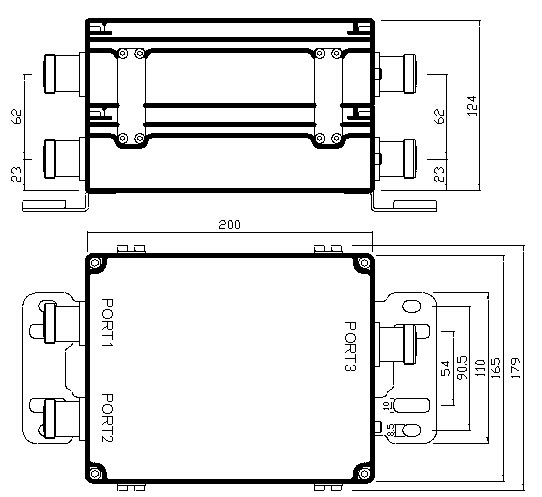

    Outline Drawing for Double Unit:

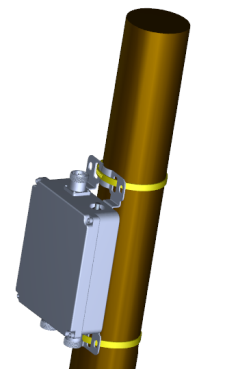

Application

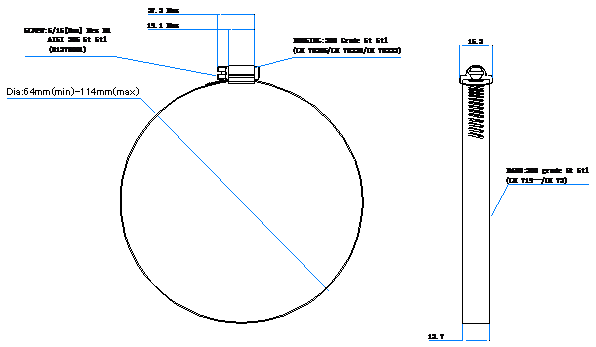

    Clamp Set:







    "A"Dia:64mm(min)-114mm(max)






Technical specifictions

Type

Single Unit (2 Ports In- 1Port Out)

Double Unit (4 Ports In- 2Ports Out)

Port

Port 1

Port 2

Operating Frequency

Band1

790~862 MHz

880~960 MHz

Band2

1710~1880 MHz

1920~2170 MHz

VSWR

< 1.3

Insertion Loss

<0.4 dB

<0.4 dB

Isolation Between Paths

>50.0 dB

Inter-modulation (3rd order)

<-150 dBc(@ 2 x 20 W

Power Handling (W)

<200W

Connector Type

DIN female

Application

Indoor or Outdoor(IP66)

Impedance

50

Operating Temperature (C)

-40C to +60C

DC/AISG Transparency

By-pass (Max. 2.5A)

By-pass (Max. 2.5A)

Lightning Protection

3kA,10/350 us pulse

Mounting

Wall mounting: With 4 Screws/Mast mounting: With addition clamp set

Wight

Single Unit<3Kg /Double Unit<6Kg
